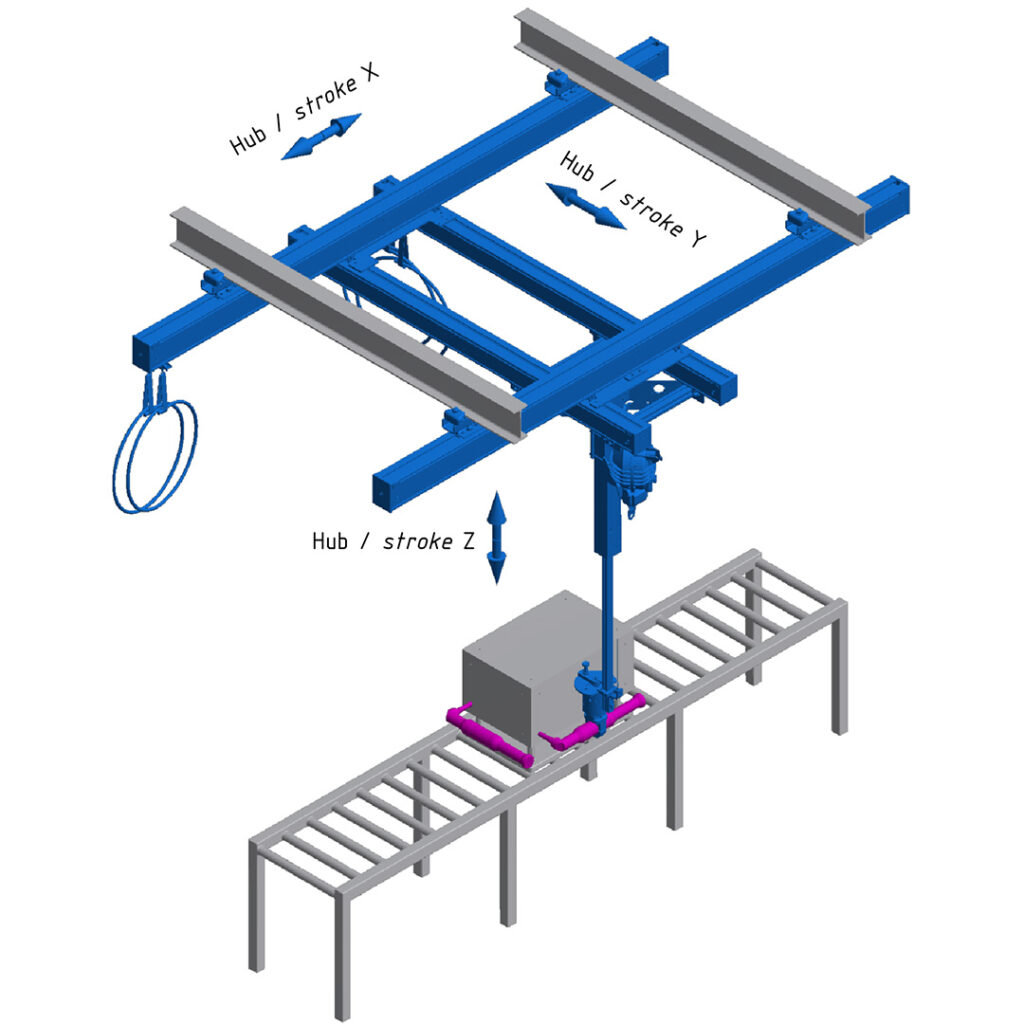

Various configurations of the handy-lift system are available for horizontal screwdriving applications. All variants have the following scope as standard, which can be selected in the configurator:

XY rail system with energy guiding

Securing the parking position

Position queries with sensors or position measuring systems

handy-lift with balancer and energy guiding

rigid or rotatable tool holders

Back to selection
JÄGER Handling
Product configurator Configurator handy-lift 200 khl02 250 Nm

Configuration

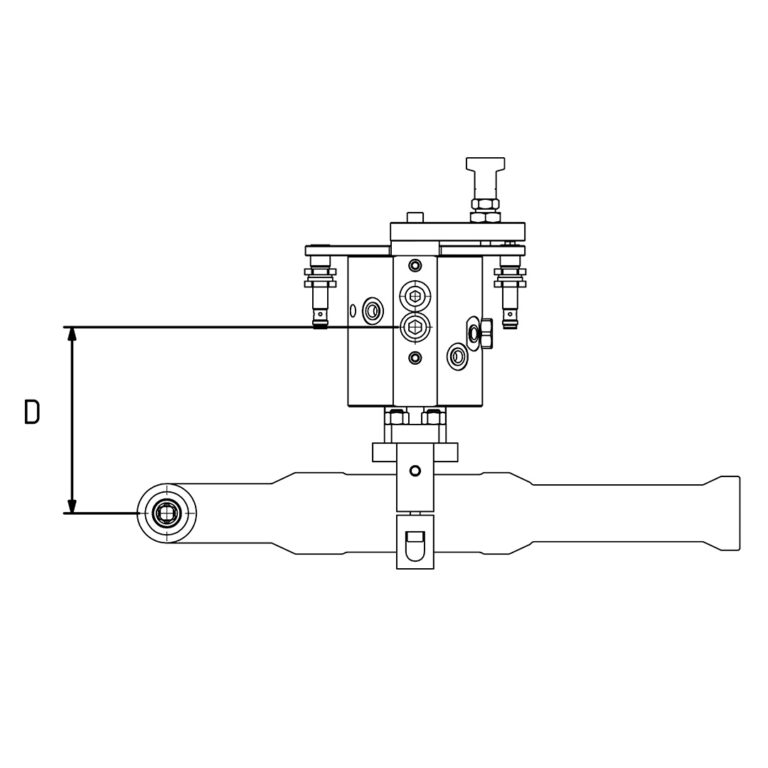

Toolholder System BAS005 Position 0.0 ANr.: KHL008 Total weight 4.51 kg Total build-up dimension 94.1 mm D Adaptation system build-up dimension BAS005_n_1080x1080px

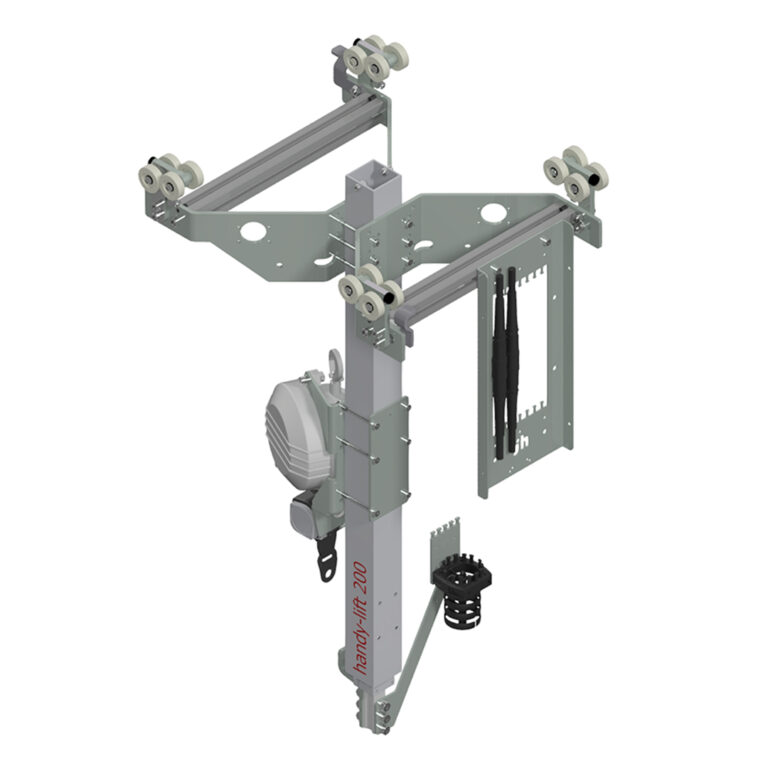

handy-lift 200 double track with Balancer Position 0.0 ANr.: KHL054 Total weight 18.61 kg BHL200_1080x1080px

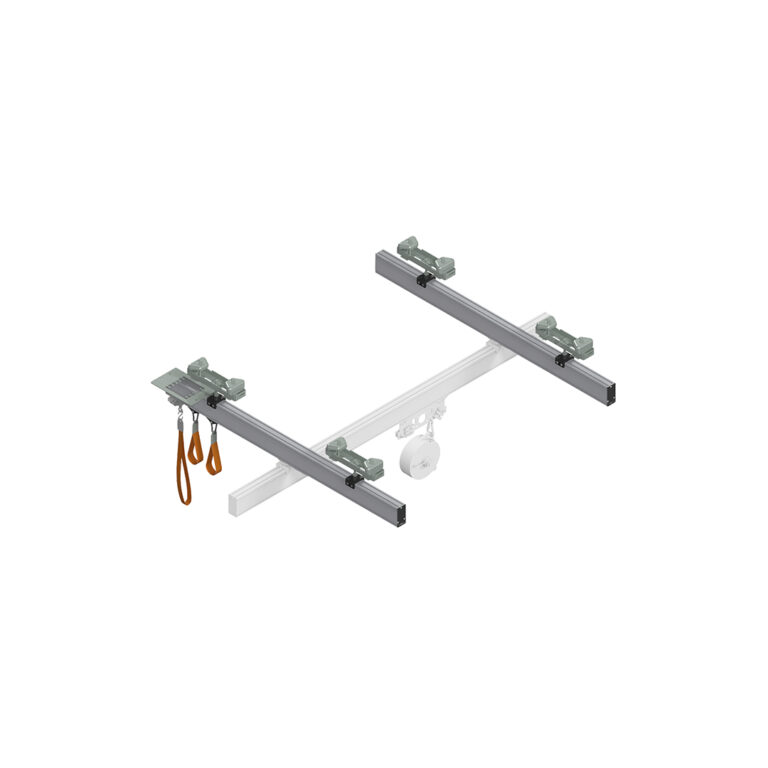

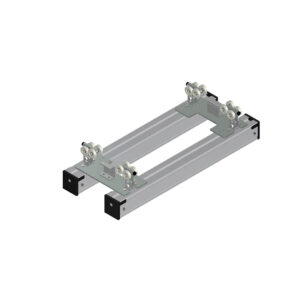

Double Lane Crane Rail 500 with Transfer Plate and Energy Guiding Position 0.0 ANr.: KHL099 Total weight 2.6 kg Kranbahn Zweispur_1080x1080px

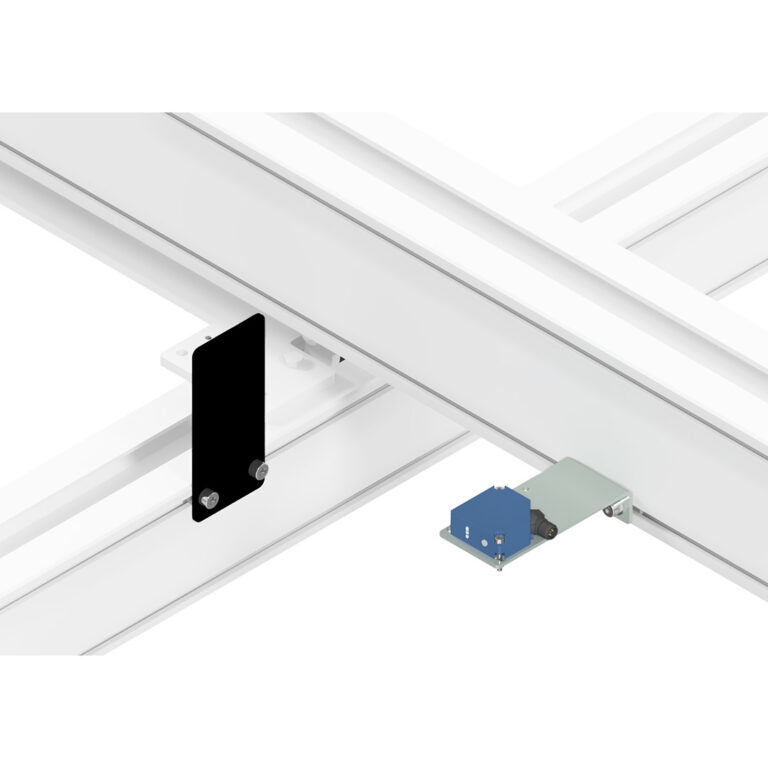

Position measuring system, horizontal axis on crane rail Position 0.0 ANr.: VHL016 134797_3_1080x1080px

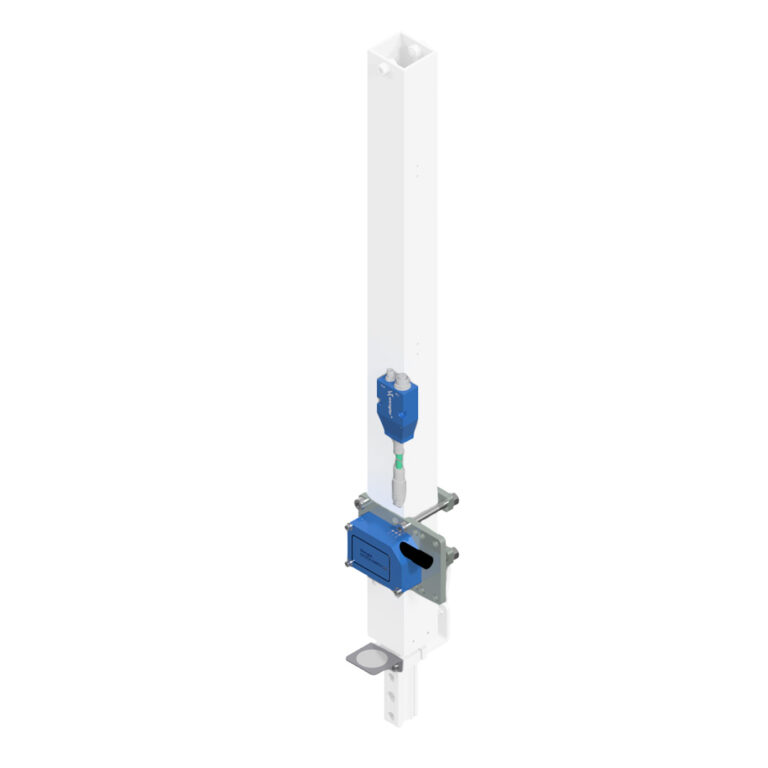

Position measuring system handy-lift 200 Position 0.0 ANr.: KHL112 65899_2_1080x1080px

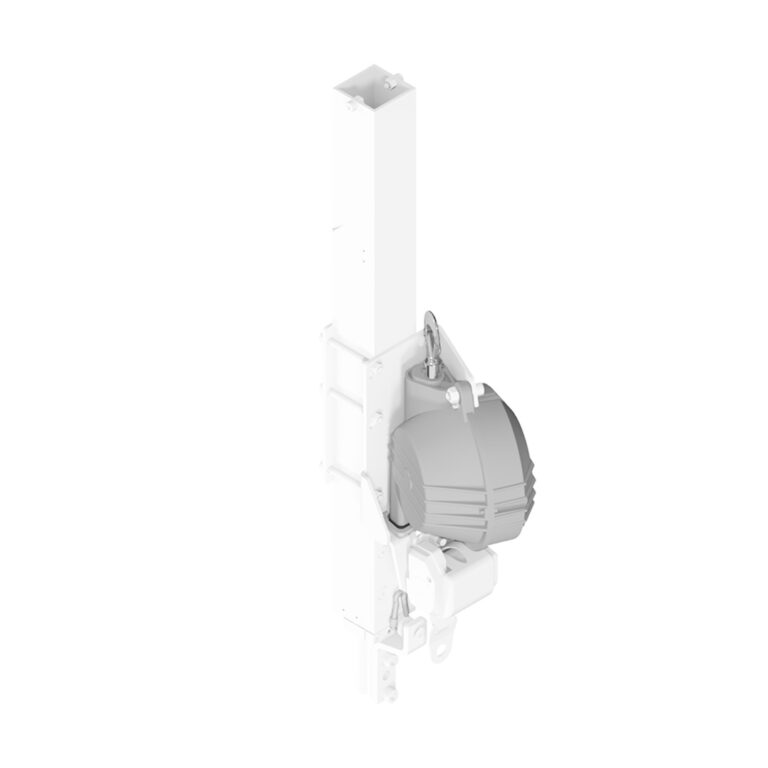

Balancer handy-lift 200 Position 0.0 ANr.: KHL035 10329_2_1080x1080px

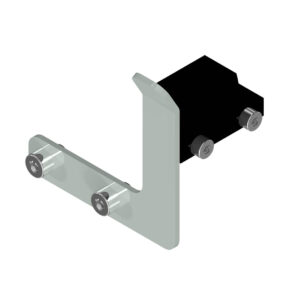

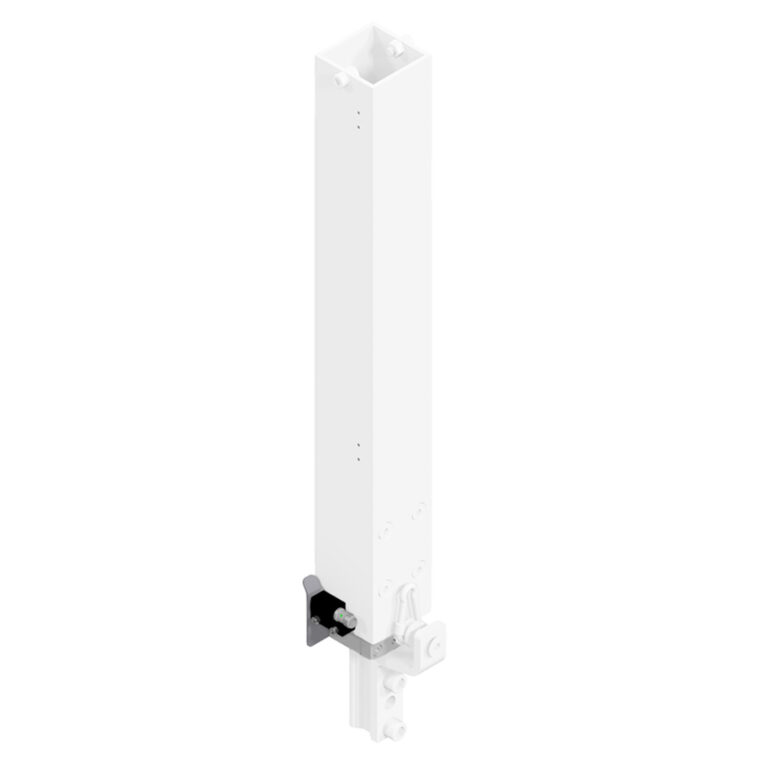

Inductive home position query vertical axis handy-lift 200 Position 0.0 ANr.: KHL087 48076_1080x1080px

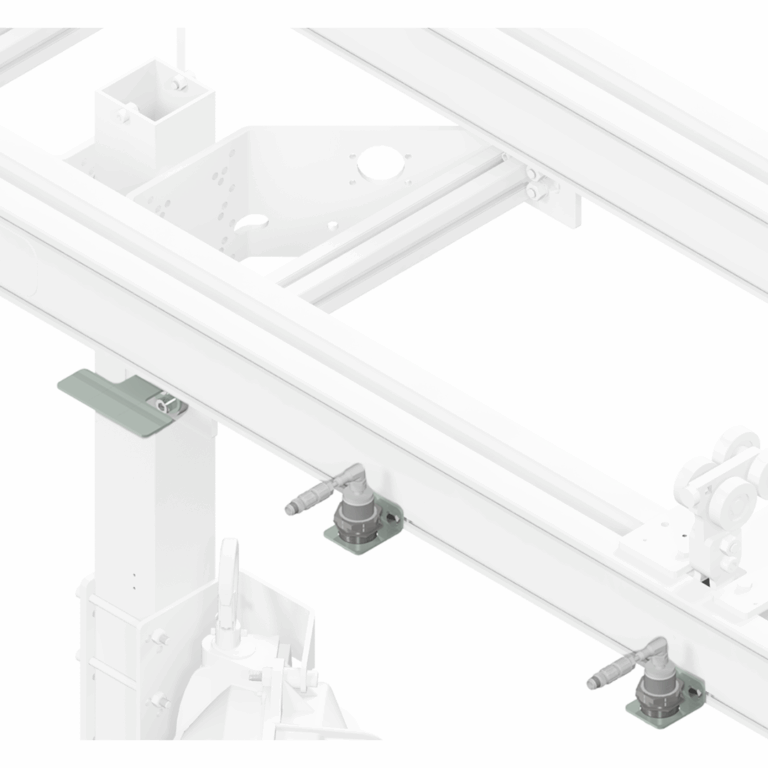

Inductive position query trolley single track / double track handy-lift 100 - 500 Position 0.0 ANr.: BHL017 Total weight 0.42 kg BHL017_1080x1080px

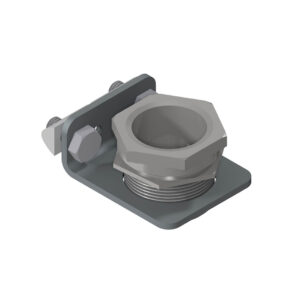

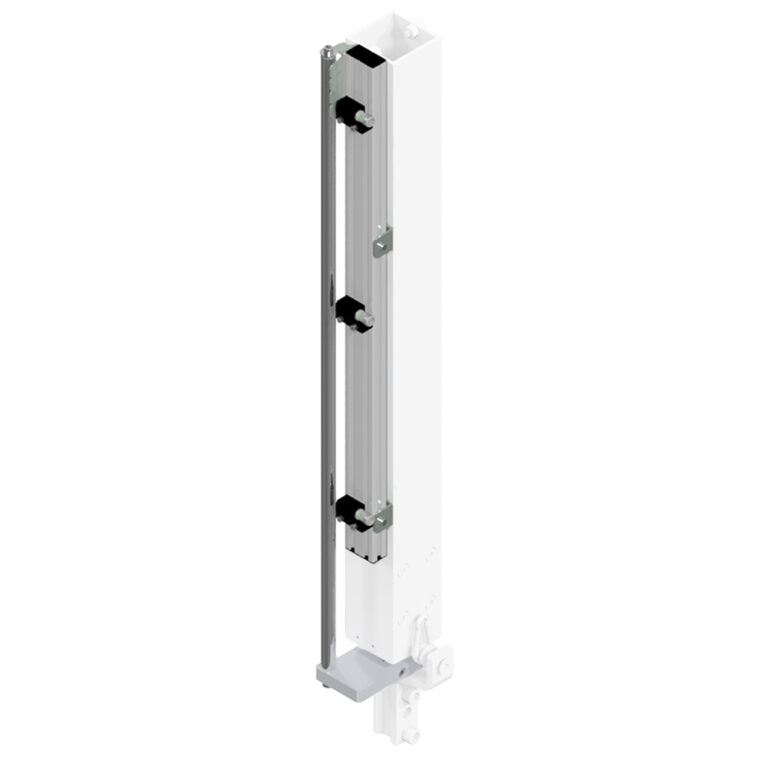

Inductive multiple position query vertical axis handy-lift 200 Position 0.0 ANr.: KHL095 Total weight 0.01 kg 126364_2_1080x1080px

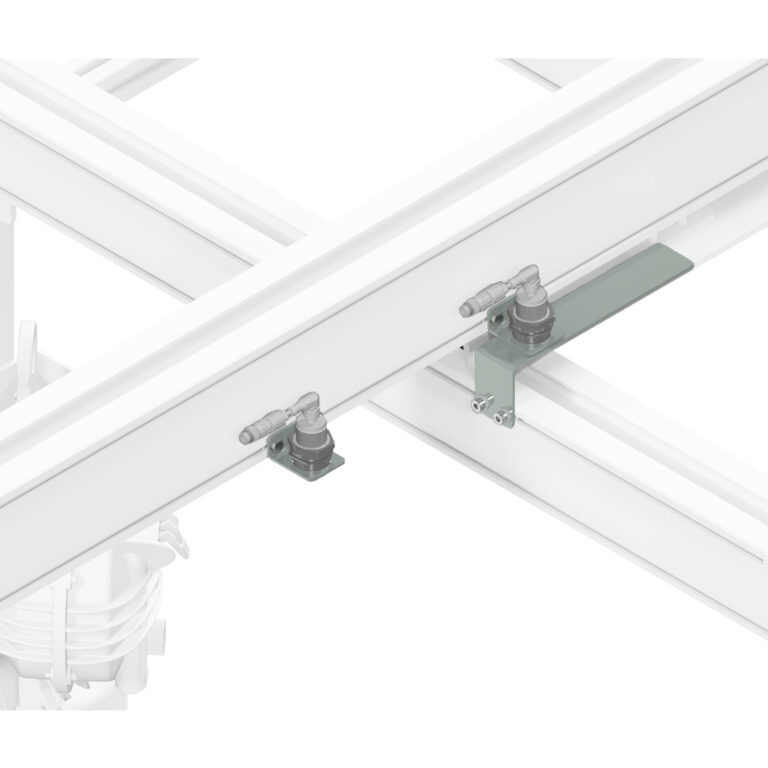

Inductive Position Query Crane Bridge Single Track / Double Track Position 0.0 ANr.: BHL016 Total weight 0.6 kg 66013_3_1080x1080px

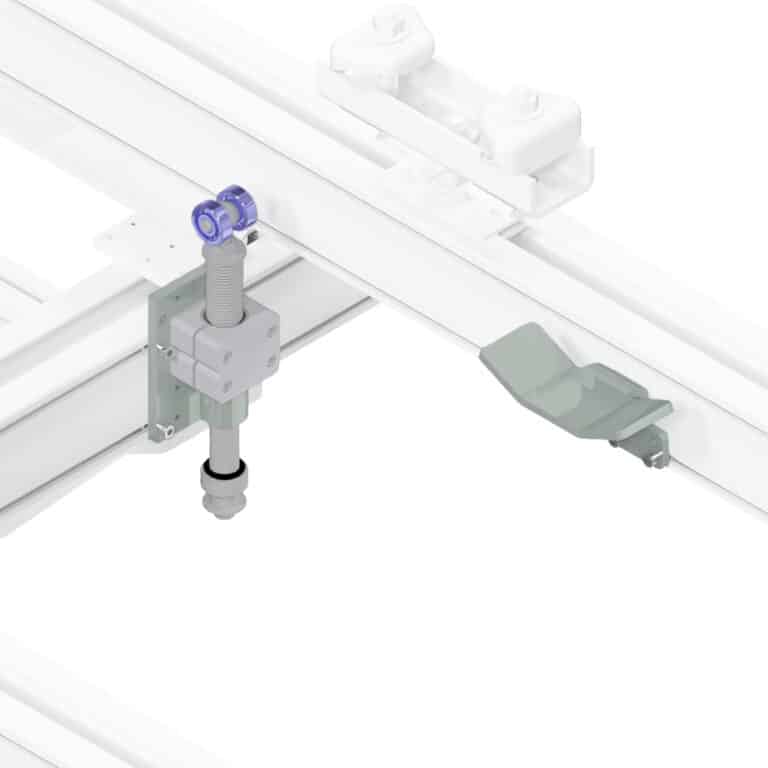

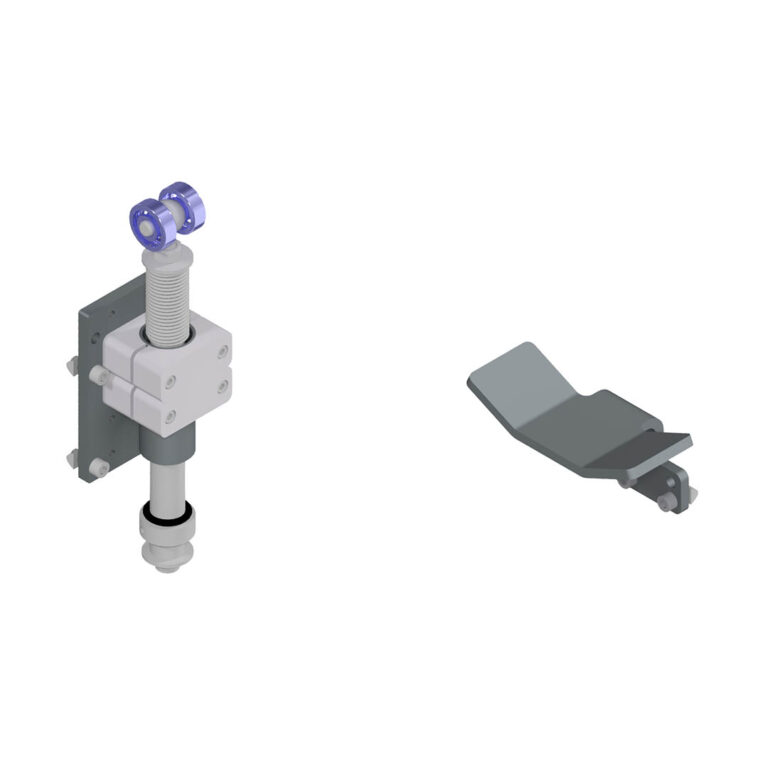

Detent roller with ramp for crane bridges, single track / double track Position 0.0 ANr.: BHL015 Total weight 1.11 kg 96471_2_1080x1080px

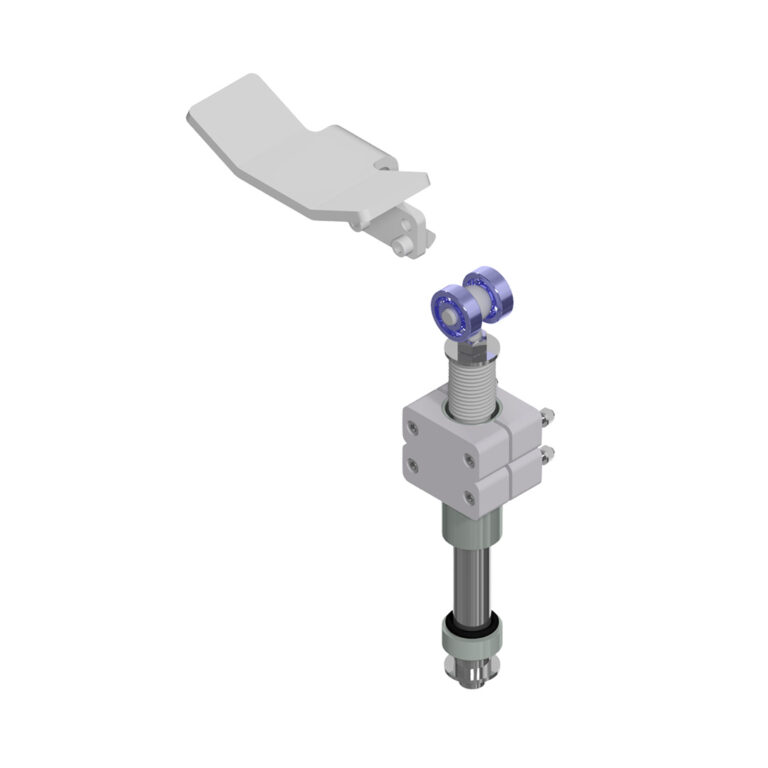

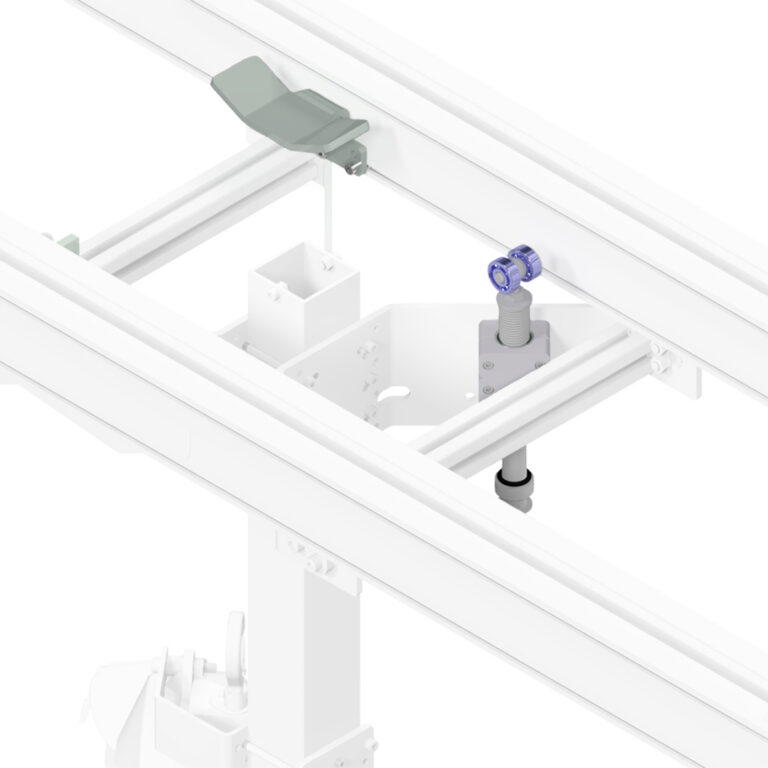

Detent roller with drive-on ramp trolley double track handy-lift 100–500 Position 0.0 ANr.: BHL014 Total weight 1.11 kg 96475_2_1080x1080px

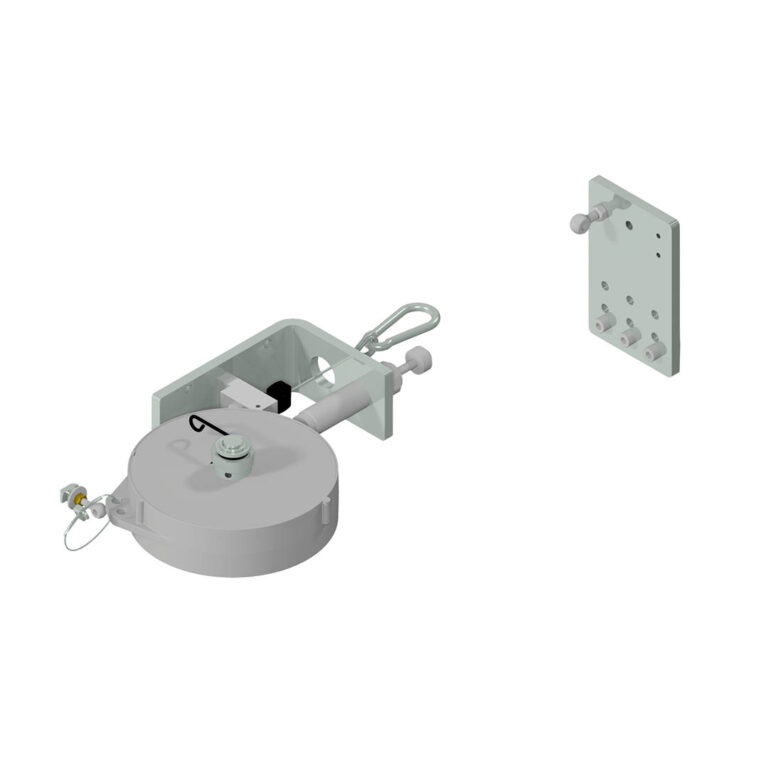

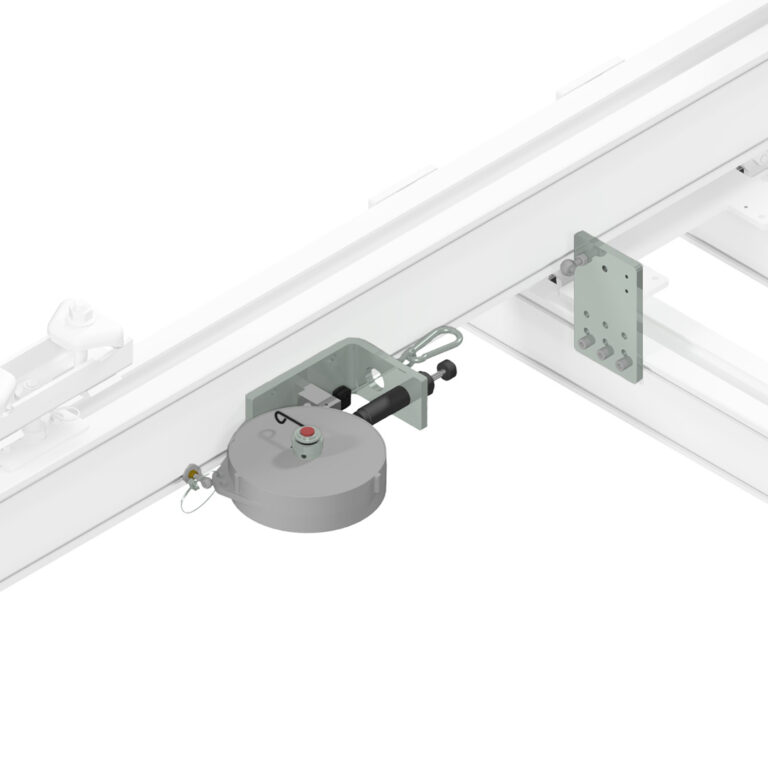

Retraction Crane Bridge Single Track / Double Track Position 0.0 ANr.: BHL012 133943_3_1080x1080px

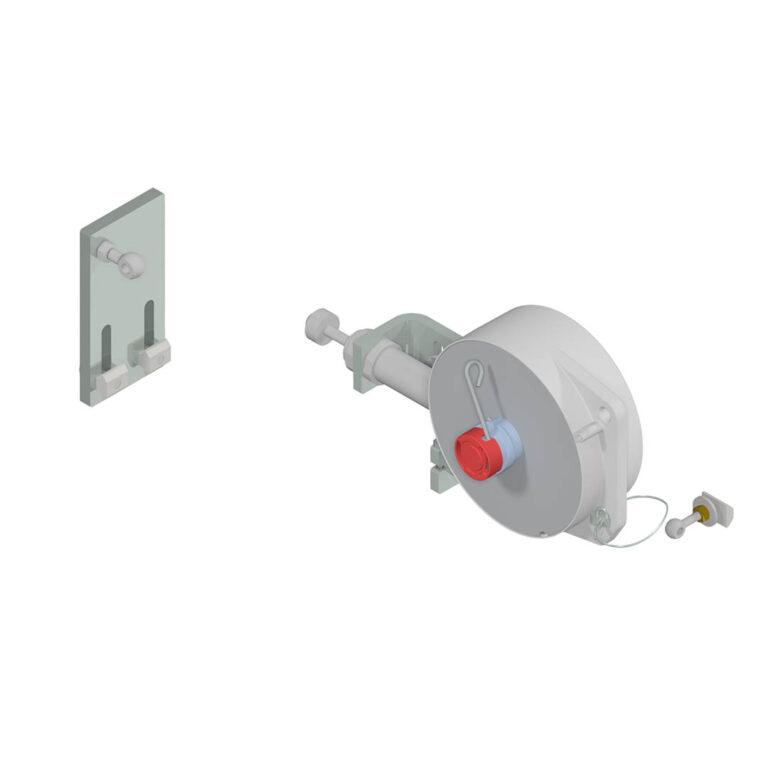

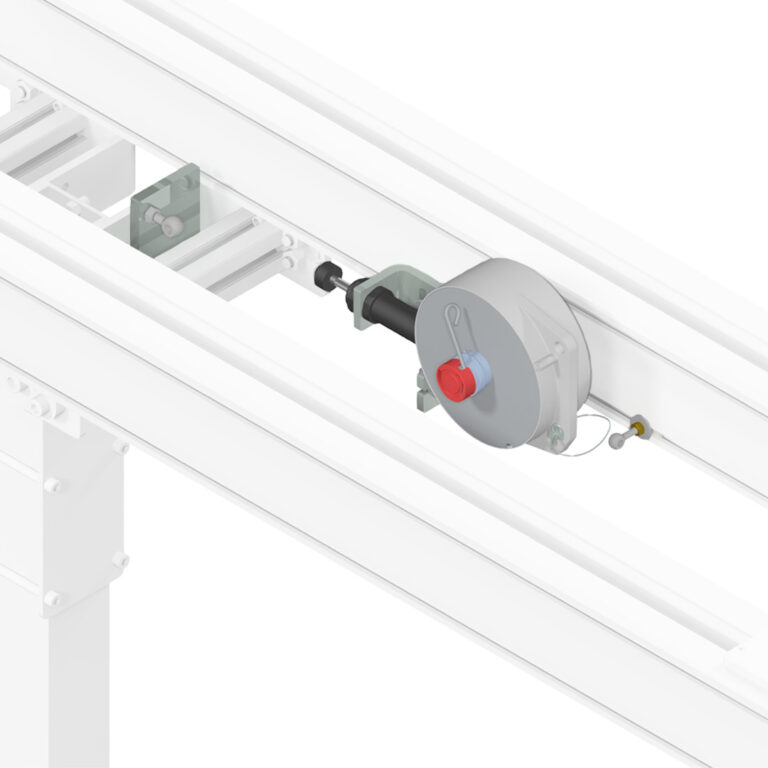

Retraction double lane trolley handy-lift 100 - 500 Position 0.0 ANr.: BHL011 128363_4_1080x1080px

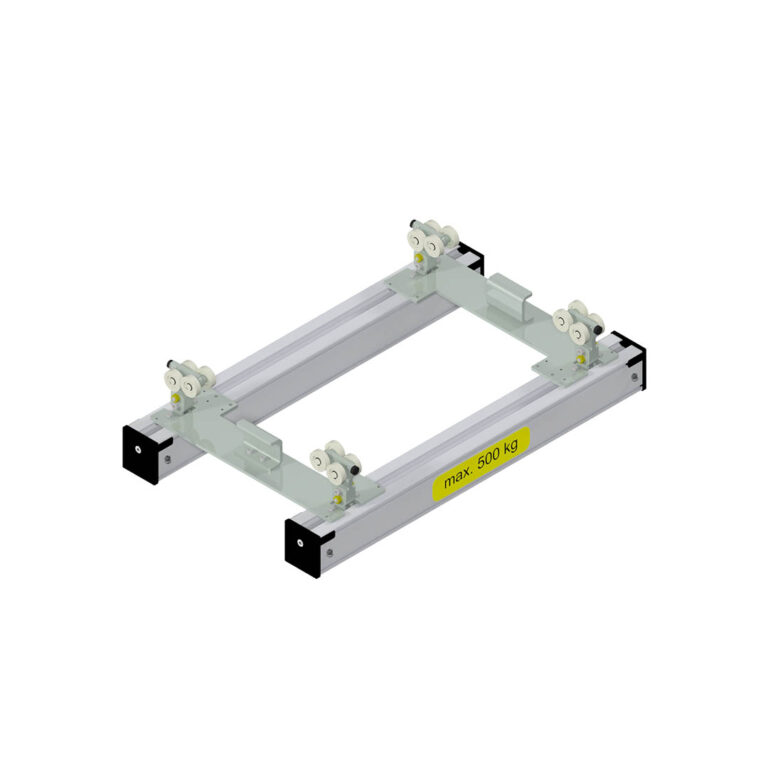

Double track crane bridge lane 500 with transfer plate and energy guiding Position 0.0 ANr.: BHL005 96497_1080x1080px
Position measuring system horizontal axis on crane bridge Position 0.0 ANr.: VHL024 119655_3_1080x1080px
Request without concern Every requested configuration is checked for plausibility by our sales team.
