Configurations for horizontal screwdriving applications
Back
Before

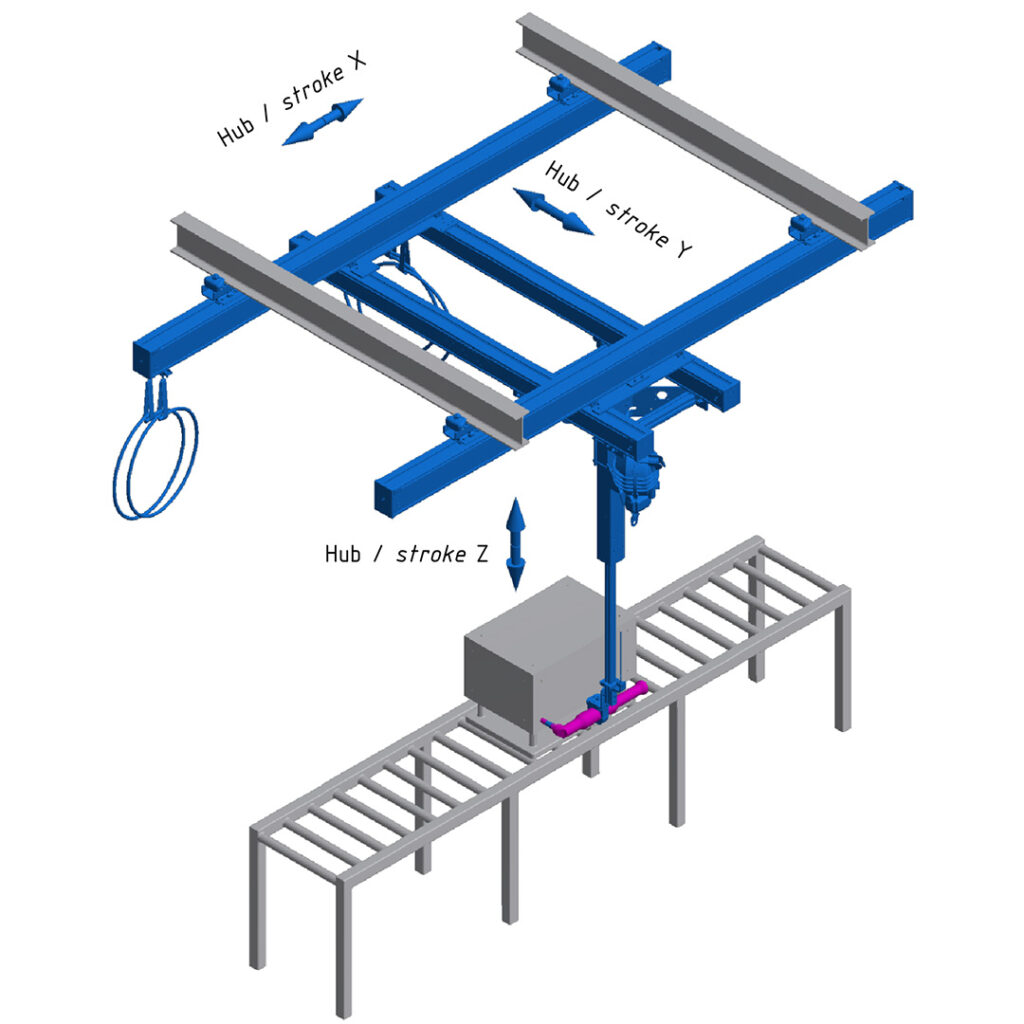

Various configurations of the handy-lift system are available for horizontal screwdriving applications. All variants have the following scope as standard, which can be selected in the configurator:

XY rail system with energy guiding

Securing the parking position

Position queries with sensors or position measuring systems

handy-lift with balancer and energy guiding

rigid or rotatable tool holders

Back to selection
JÄGER Handling
Product configurator Configurator handy-lift 100 khl01 Horizontal

Configuration

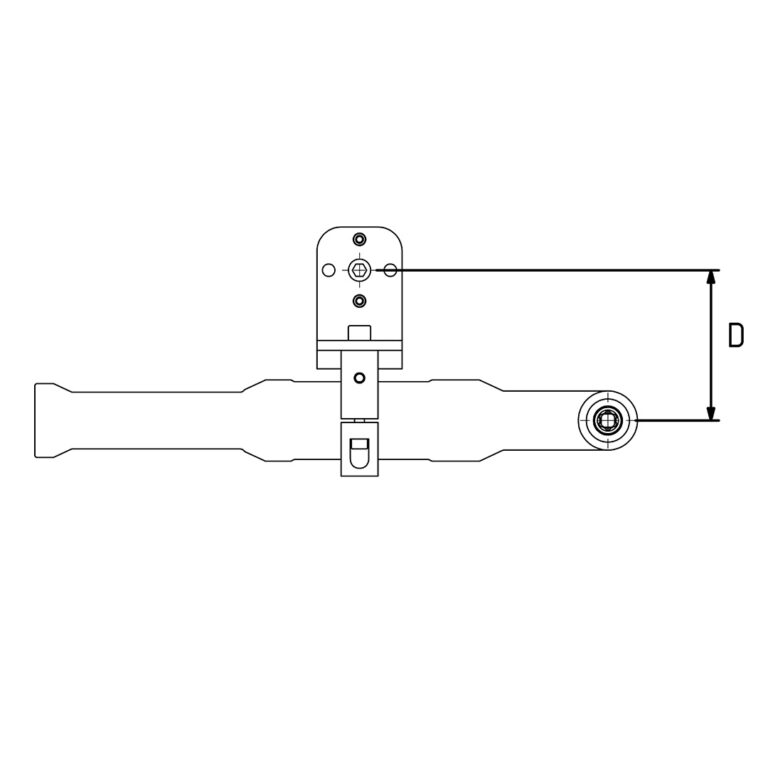

Toolholder System BAS009 Position 0.0 ANr.: KHL016 Total weight 0.71 kg Total build-up dimension 65 mm BAS009_n_1080x1080px

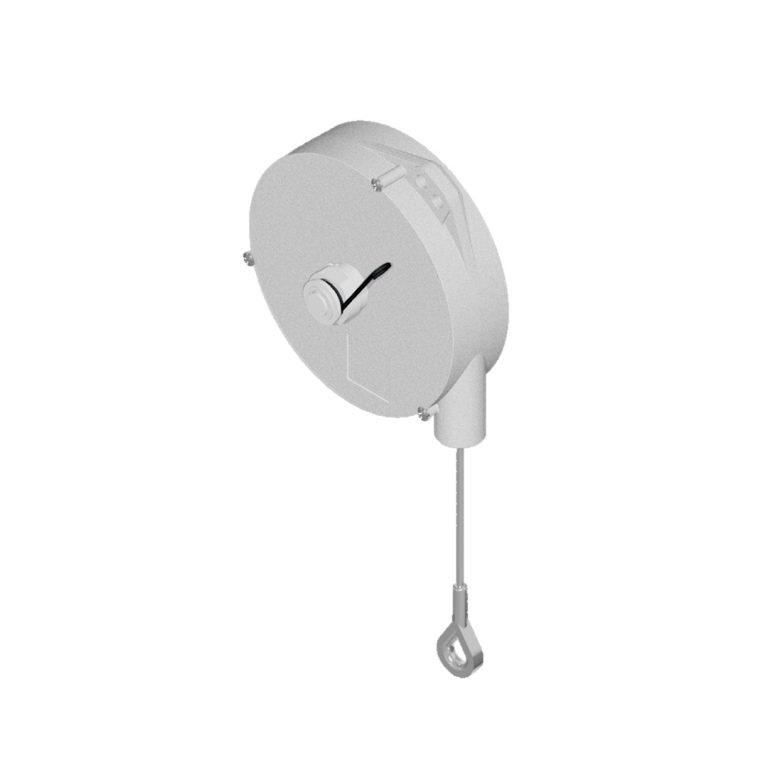

Spring balancer Position 0.0 ANr.: KHL038 Spring balancer series 9336-9340 1080x1080

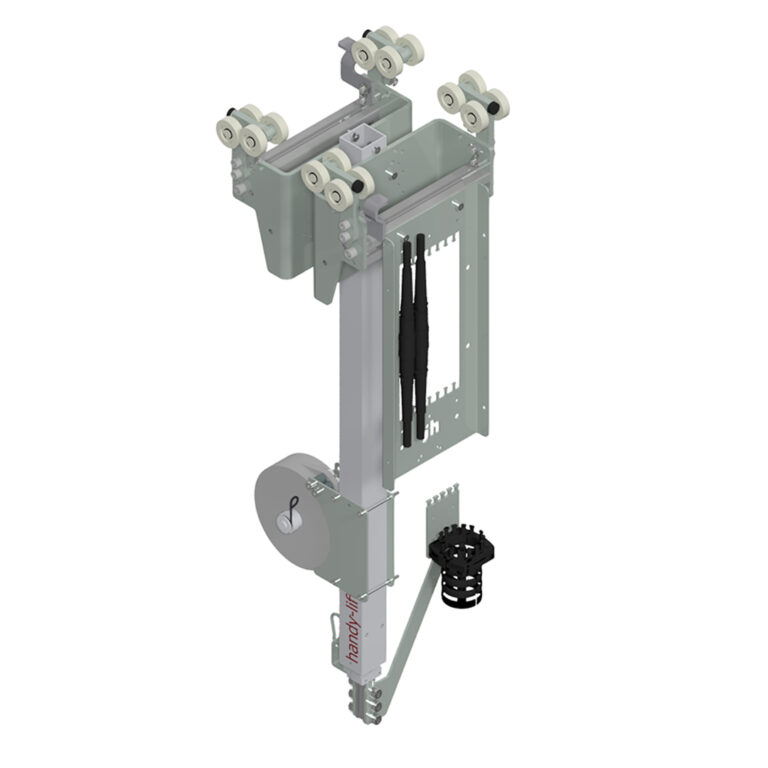

handy-lift 100 double track with balancer Position 0.0 ANr.: KHL042 Total weight 10.53 kg BHL100_1080x1080px

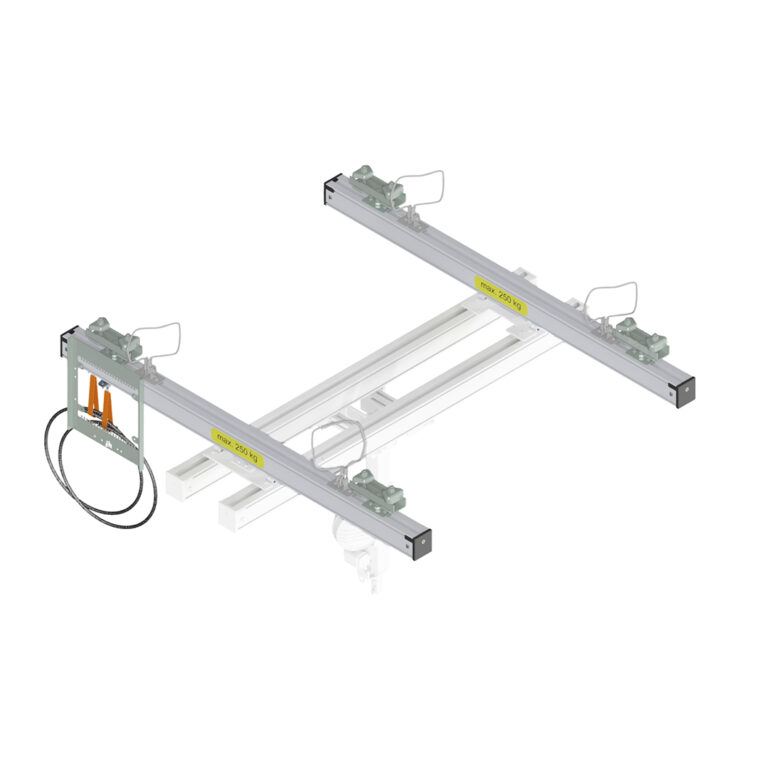

Double track crane rail lane 300 with transfer plate and energy guiding Position 0.0 ANr.: KHL098 Total weight 2.6 kg Kranbahn Zweispur_1080x1080px
Position measuring system, horizontal axis on crane rail Position 0.0 ANr.: VHL016 134797_3_1080x1080px

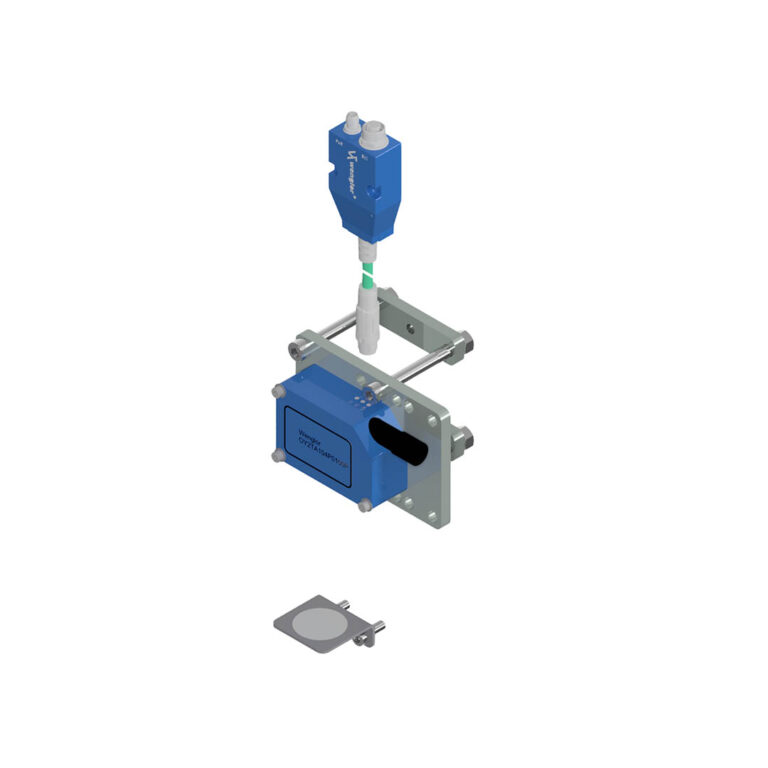

Position measuring system handy-lift 100 Position 0.0 ANr.: KHL111 Total weight 1.5 kg 65897_1080x1080px

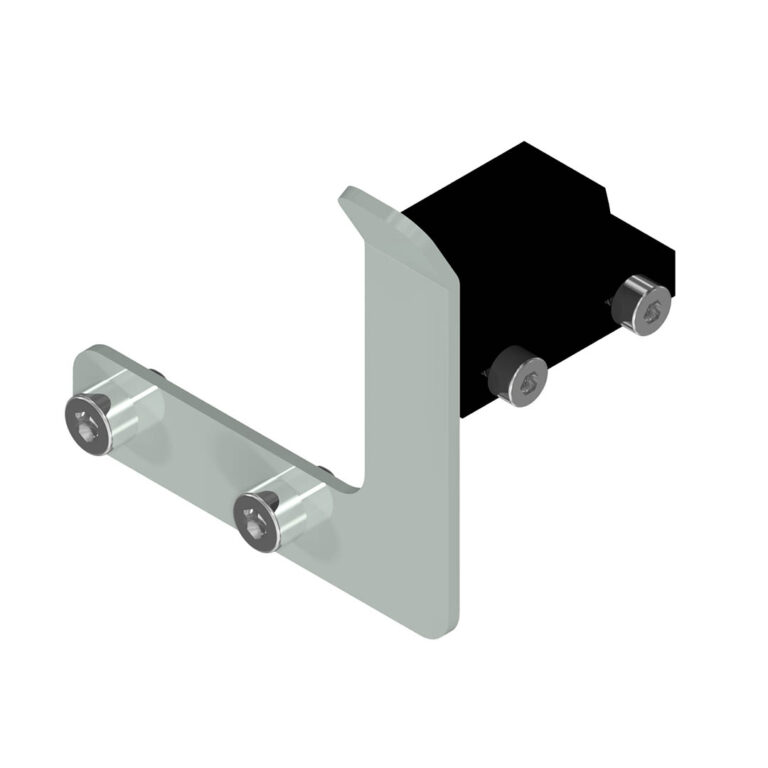

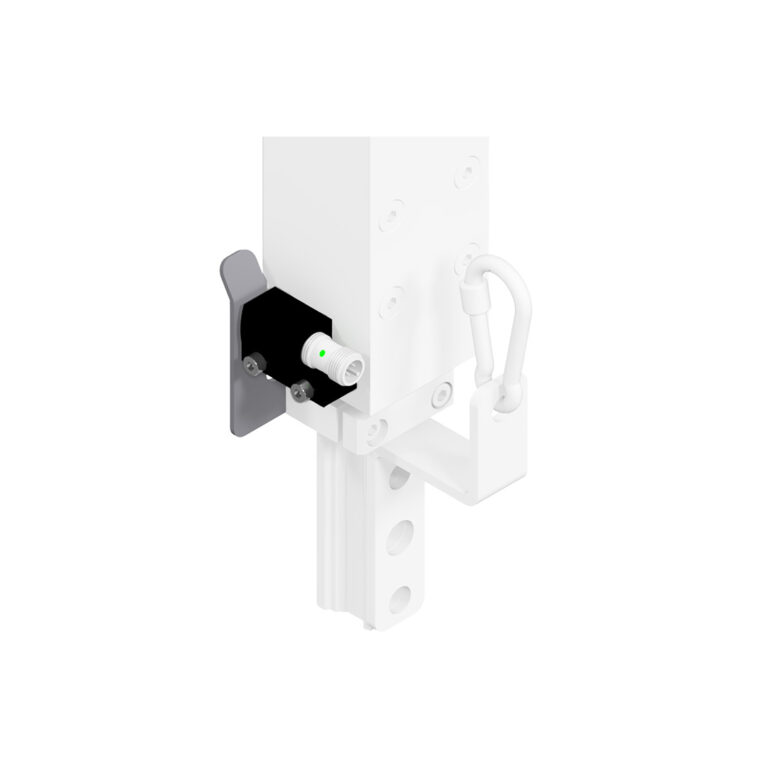

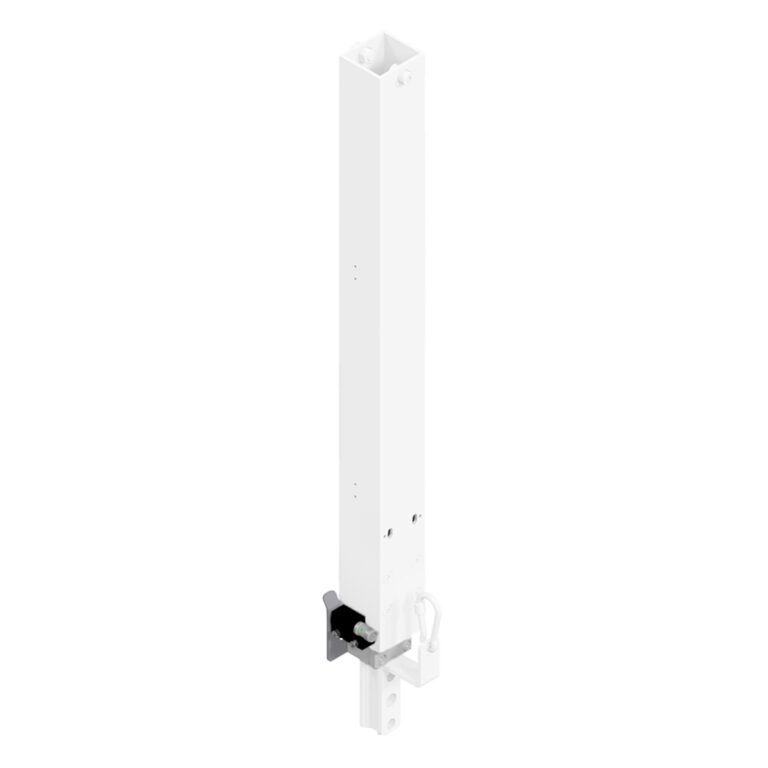

Inductive home position query vertical axis handy-lift 100 Position 0.0 ANr.: KHL086 48072_1080x1080px
Inductive position query trolley single track / double track handy-lift 100 - 500 Position 0.0 ANr.: BHL017 Total weight 0.42 kg BHL017_1080x1080px

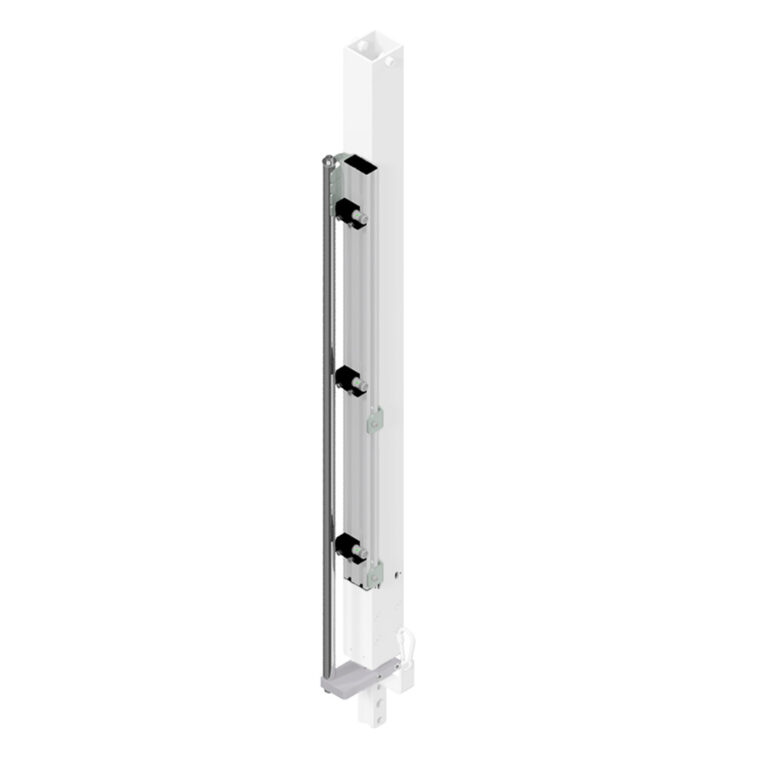

Inductive multiple position query vertical axis handy-lift 100 Position 0.0 ANr.: KHL094 Total weight 0.01 kg 126481_2_1080x1080px
Inductive Position Query Crane Bridge Single Track / Double Track Position 0.0 ANr.: BHL016 Total weight 0.6 kg 66013_3_1080x1080px
Detent roller with ramp for crane bridges, single track / double track Position 0.0 ANr.: BHL015 Total weight 1.11 kg 96471_2_1080x1080px
Detent roller with drive-on ramp trolley double track handy-lift 100–500 Position 0.0 ANr.: BHL014 Total weight 1.11 kg 96475_2_1080x1080px
Retraction Crane Bridge Single Track / Double Track Position 0.0 ANr.: BHL012 133943_3_1080x1080px
Retraction double lane trolley handy-lift 100 - 500 Position 0.0 ANr.: BHL011 128363_4_1080x1080px

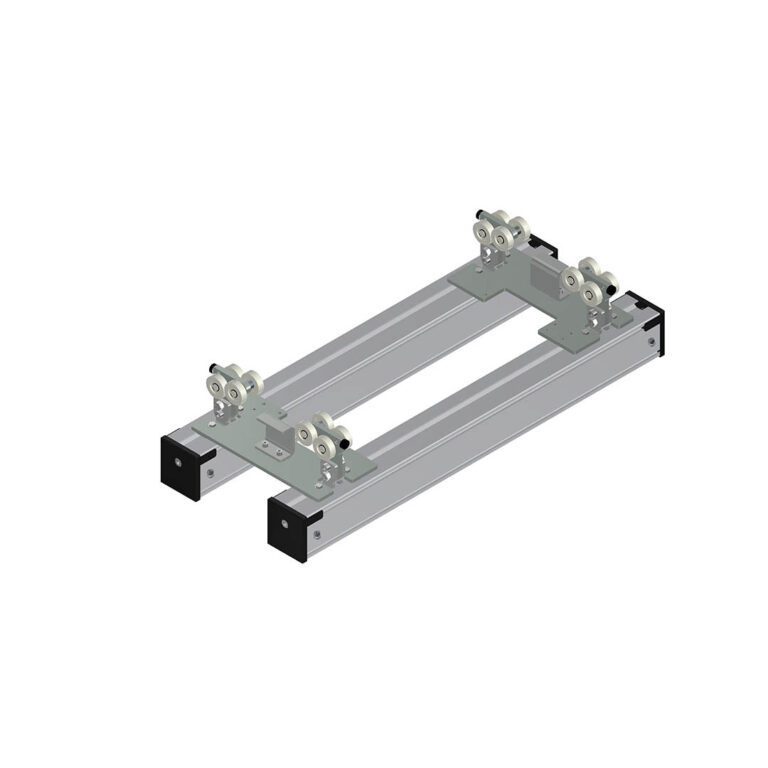

Double track crane bridge with transfer plate and energy guiding for handy-lift 100 Position 0.0 ANr.: BHL004 96489_1080x1080px
Position measuring system horizontal axis on crane bridge Position 0.0 ANr.: VHL024 119655_3_1080x1080px
Request without concern Every requested configuration is checked for plausibility by our sales team.
